Wall-Mounted EV Charging Stations: A Smart Choice for Home and Commercial Charging
Introduction
As a Trusted EV Charger Manufacturer in China, Topper Company Delivers Dependable Electric Vehicle Charging Stations and Comprehensive Solutions.
As the global shift toward electric vehicles (EVs) accelerates, the demand for efficient and accessible charging infrastructure is booming. Among the various solutions, wall-mounted EV charging stations have become increasingly popular. These fixed units offer faster charging than standard outlets while integrating seamlessly into homes, workplaces, and public venues.
But what exactly is a wall-mounted EV charger? How does it work, and what are its advantages and limitations? This article covers everything you need to know—from core functions and smart features to installation and maintenance—to help you determine if a wall-mounted charging station fits your EV charging needs.

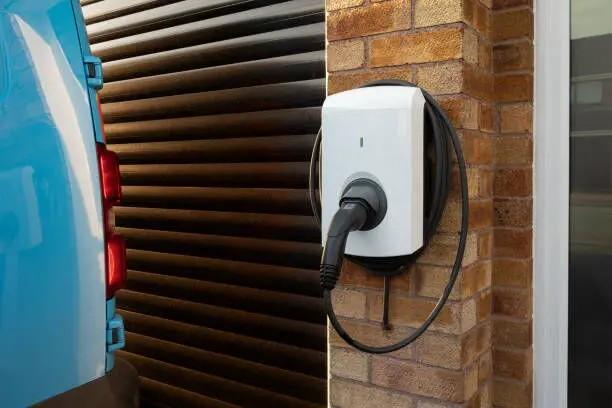

What Is a Wall-Mounted EV Charging Station?
A wall-mounted EV charging station is a permanently installed device designed to deliver electrical power from the grid to your EV through a specialized interface. Typically configured as Level 2 chargers, these stations connect to a 240V supply, enabling significantly faster charging compared to standard Level 1 chargers that plug into regular outlets.
Usually mounted in garages, driveways, parking areas, or commercial buildings, these chargers consist of a control box, charging cable, and vehicle-compatible connector. Their fixed setup enhances safety and efficiency, and often integrates with smart energy management systems for optimized usage.
How Wall-Mounted EV Chargers Work
Wall-mounted chargers act as sophisticated power conversion and communication hubs. Here’s a breakdown of their core functions:
-
Power Conversion
They receive alternating current (AC) from the grid and supply it to the EV’s onboard converter, which transforms it into direct current (DC) for battery charging. -
Smart Communication
Integrated software communicates with the EV’s battery management system (BMS) to optimize current and voltage based on battery condition, temperature, and charge status. -
Safety Controls
Built-in protections such as thermal sensors, overvoltage cutoffs, and fault detection safeguard both the charger and vehicle from overheating, overcurrent, and short circuits. -
Network Connectivity
Many modern units are “smart chargers” connected via WiFi or mobile apps, enabling remote control, scheduled charging, energy monitoring, and participation in utility demand response programs.
Key Technical Features
-
Connector Compatibility: Support for standards like SAE J1772 (North America), Type 2 (Europe), and fast-charging protocols (CCS, CHAdeMO).
-
Charging Power: Typically ranges from 3.7 kW to 22 kW. For example, a 7 kW charger can fully charge a 60 kWh battery (e.g., Tesla Model 3) in about 8 hours.
-
Universal Voltage: Designed for 100V–240V, compatible with various electrical systems worldwide.
-
Multiple Ports: Some models offer dual ports for charging two vehicles simultaneously—ideal for commercial or multi-residential settings.
-
Durability: Weatherproof enclosures rated IP54 or higher allow safe outdoor use.
-
Fast Charging Support: Some support proprietary or USB Power Delivery protocols to speed up charging when compatible.
Advantages of Wall-Mounted EV Chargers
-
Permanent and Reliable
Unlike portable chargers, these stay installed and ready to use anytime. -
Faster Charging
Wall chargers dramatically reduce charging time—adding around 25–30 miles of range per hour at 7 kW power levels. -
Smart Features
App control, scheduling to leverage off-peak rates, real-time energy tracking, and solar integration enhance user experience and efficiency. -
Boosts Property Value
Homes equipped with EV chargers attract environmentally conscious buyers and may command higher market prices. -
Convenience
Home or workplace charging eliminates frequent trips to public stations, enabling effortless daily top-ups or fleet management.
Disadvantages to Consider
-
Professional Installation Needed: Requires a licensed electrician and possibly electrical panel upgrades, which can add complexity and cost.
-
Fixed Location: Cannot be moved once installed, unlike portable chargers.
-
Initial Cost: Purchase plus installation can range from $800 to over $2,000, potentially a barrier for some users.
Ideal Use Cases
-
Residential Homes: Overnight charging for daily use.
-
Apartments/Condos: Shared parking with smart access control.
-
Workplaces: Employee EV charging that reduces downtime.
-
Public Parking: Convenient charging during errands or dining.
-
Fleet Operations: Overnight charging for delivery and service vehicles.
Installation Overview
-
Site Assessment: Evaluating electrical capacity and layout.
-
Permitting: Complying with local regulations.
-
Electrical Upgrades: Panel updates if necessary.
-
Mounting and Wiring: Secure installation near parking spots.
-
Testing: Ensuring safe and correct operation.
Always use certified installers, especially if pursuing rebates or incentives.
Maintenance Tips
-
Regular Inspection: Monthly checks for damage, wear, loose fittings, or corrosion.
-
Cleaning: Use gentle cloths, avoid harsh chemicals.
-
Weatherproofing: Check seals and enclosures after severe weather.
-
Firmware Updates: Keep smart chargers up to date.
-
Professional Check-ups: Periodic inspections by electricians ensure reliability.
The Future of Wall-Mounted EV Chargers
Emerging trends include:
-
Bidirectional Charging (V2G): Allowing EVs to feed power back to the grid.
-
Solar Integration: Direct charging from solar PV systems.
-
Dynamic Load Balancing: Efficient power distribution among multiple chargers.
-
Enhanced Cybersecurity: Protecting smart chargers from threats.
As EV adoption grows, wall-mounted chargers will be essential for a clean energy future.
Conclusion
Wall-mounted EV charging stations are more than a convenience—they are vital enablers of sustainable electric mobility. Offering reliable, fast, and smart charging solutions for homes and businesses alike, they deliver long-term benefits that justify upfront investment.
By understanding how these chargers work, their features, pros and cons, and upkeep requirements, EV owners and organizations can make informed choices that power their journey into a cleaner tomorrow.
