Butterfly valve manufacturing in Germany

Valvesonly Europe, a leading Butterfly valve manufacturing in Germany offers exemplary butterfly valves for efficient flow management in industrial processes. Because of its cost-effectiveness, ease of use, and space-saving design, it is extensively used by sectors including power generation, chemical processing, oil and gas, water treatment, and HVAC systems.

A butterfly valve regulates the flow of fluid via a disc in the centre of the pipe using a quarter-turn rotary valve. It is well-known for its minimal pressure drop, quick operation, and light weight, which make it appropriate for both throttling and on/off service.

What is the difference between wafer and lugged butterfly valve?

Wafer and lugged butterfly valves are two of among the most widely used butterfly valves for controlling pipeline flow, albeit their applications, installations, and designs differ. Because wafer butterfly valves are designed to be installed between two pipeline flanges and fastened with bolts that pass through both flanges, they are lightweight and reasonably priced. Even though they lack threaded inserts, they are not suitable for end-of-line service because the removal of one side of the pipeline would lead to leakage and loss of pressure. On the contrary, both lugged butterfly valves have threaded inserts that enable them to be attached directly to the pipeline. Because of their design, which enables one side of the pipeline to be unbolted without affecting the other, lugged valves are appropriate for high-pressure applications and system isolation for maintenance. Although wafer butterfly valves are appropriate for low-pressure systems and general-purpose applications, lugged butterfly valves are used in high-pressure and critical service applications due to their strength and ease of installation.

Advantages:

Lightweight & Space-saving: It is easy to install and requires little room.
Quick operation: The quarter-turn mechanism opens and closes quickly.
Low pressure drop means there is little flow resistance.
Economical: More affordable than various other industrial valves.
Flexible: Suitable for both liquid and gaseous applications.

Components:

Body: Connects to the pipeline and holds the internal components.
butterfly's Disc: Spins for regulating fluid flow.
Stem (Shaft): Enables movement by linking the actuator/handle to the disc.
Seat: Provides a leak-proof seal.
Actuator: Controls the valve's operation (manual, pneumatic, or electronic actuator or handle)

Types:

Wafer Butterfly Valve- Interspersed between flanges, breathable and reasonably priced.

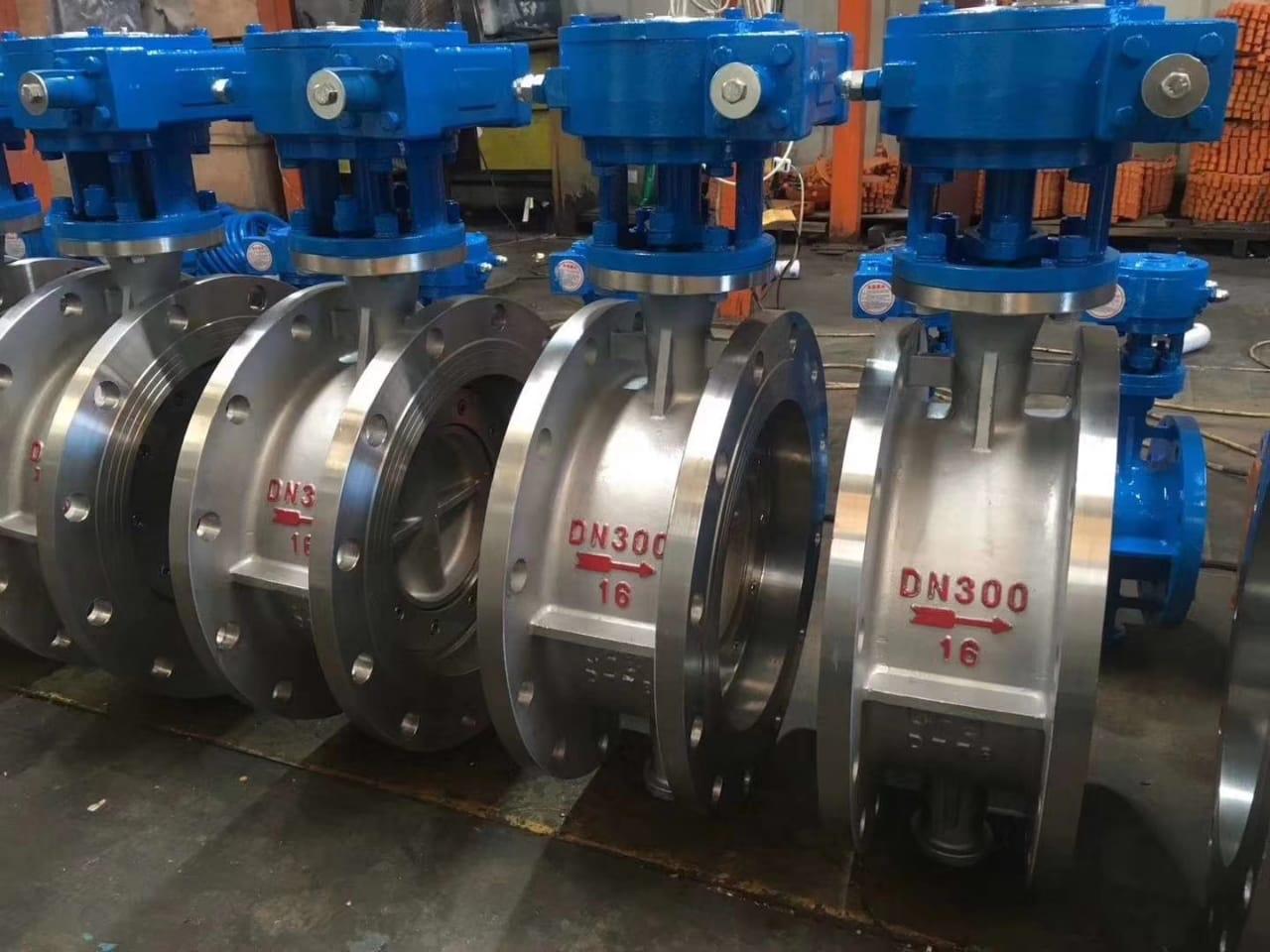

Flanged Butterfly Valve- Secured firmly between pipeline flanges with bolts.
Triple eccentric Butterfly Valve
Double Offset Butterfly Valve
Triple Offset Butterfly Valve
Lug Butterfly Valve- Has slotted inserts that make removal simple and pipeline-uninterruptible.

Description:

Body Material: Cast Carbon steel (WCC,WCB, WC6), Stainless Steel [SS316, SS304, SS316L, SS904L, CF8, CF8M, F31L, F91], DUPLEX STEEL and Super duplex Steel (F51,F53,F55) , Cast iron, Ductile Iron.

Size – 2” – 48”

Class- 150 to 300; PN 6 – PN 25

Ends- Wafer, flanged, lug

Operations- Lever operated, gear operated, pneumatic actuated and electric actuated.

Butterfly valve manufacturing in Germany offers highly effective designs with a diverse range of features, making their products essential in many industrial applications.
