Pneumatic Ball Control Valves: Precision Automation for Industrial Flow Management
Pneumatic Ball Control Valves: Key Features and Applications in Industrial Systems
Pneumatic ball control valves have become integral components in various industrial fluid systems, offering a reliable, energy-efficient solution for automated flow control. These valves are particularly valued for their speed, precision, and durability, making them ideal for applications that require quick response times and long-term performance. As industries move toward smarter, more efficient process control technologies, pneumatic ball valves continue to be a preferred choice for engineers and system designers around the world.
What Is a Pneumatic Ball Control Valve?

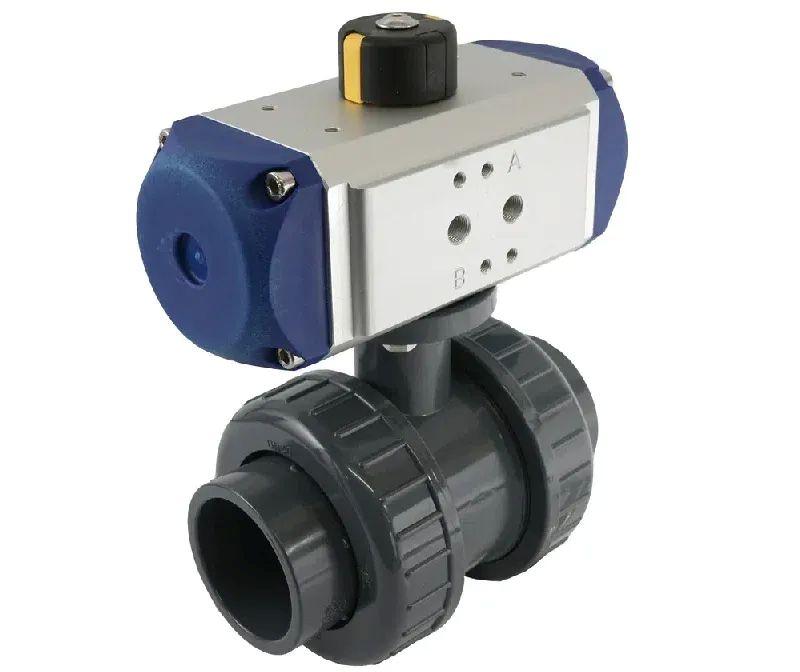

A pneumatic ball control valve is an automatic shutoff valve that uses a spherical ball to control the flow of fluids or gases through a pipe. The valve opens or closes by rotating the ball 90 degrees, which is driven by a pneumatic actuator. The ball, with a hole through its center, aligns with the flow path when open, allowing media to pass through, and blocks the flow when rotated perpendicular to the pipe.
The pneumatic actuator converts the energy from compressed air into mechanical motion, allowing the valve to respond quickly to control signals. This combination of precise modulation and rapid response makes pneumatic ball valves ideal for high-volume and high-pressure applications in industries such as chemical processing, water treatment, oil and gas, pharmaceuticals, food and beverage, and power generation.
Key Components: Valve and Actuator
The pneumatic ball valve assembly typically consists of two main components:
-
Ball Valve Body
The ball valve body houses the ball, which is precision-machined from stainless steel or other corrosion-resistant materials. The ball rotates inside the valve cavity and is sealed by valve seats, often made of PTFE or similar soft materials, to ensure a tight shut-off when the ball is rotated. -
Pneumatic Actuator
The pneumatic actuator is responsible for rotating the ball. There are two common types of pneumatic actuators:-
Single-Acting (Spring Return): In this configuration, the valve is moved by compressed air to the open or closed position, and a spring automatically returns it to its default position when the air supply is removed. This setup is particularly beneficial in fail-safe applications.
-
Double-Acting: Both opening and closing actions are controlled by compressed air, eliminating the need for a spring. This actuator type is suitable for applications requiring frequent cycling and bidirectional control.
-
Pneumatic actuators generally offer faster response times than electric actuators and are more suitable for environments with explosive risks, as they pose no risk of sparking.
Advantages of Pneumatic Ball Valves
Pneumatic ball valves offer several advantages for industrial flow control systems:
-
High-Speed Operation: Pneumatic actuators provide fast open/close response times, making these valves ideal for applications that require quick actuation.
-
Fail-Safe Design: In single-acting versions, the spring-return feature ensures the valve returns to a safe position if air supply is lost, enhancing system safety.
-
Energy Efficiency: Pneumatic systems use energy only during actuation, unlike electric actuators that consume power continuously.
-
Compact and Lightweight: Pneumatic actuators are generally smaller and lighter than their electric counterparts, making them easier to install in confined spaces.
-
Durability and Reliability: Designed with tight tolerances and robust seals, pneumatic ball valves are built to withstand harsh operating conditions and continuous service.
-
Low Maintenance: With fewer moving parts and less heat generation, pneumatic ball valves typically require less maintenance than electric actuators over their lifespan.
Installation Considerations
Proper installation is crucial for ensuring the performance and longevity of pneumatic ball valves. Key factors to consider include:
-
Environmental Suitability: Ensure the valve and actuator are appropriate for the operating environment. Stainless steel bodies and weatherproof or explosion-proof actuator housings may be needed for corrosive or outdoor environments.
-
Safety Protocols: Always adhere to safety standards during installation. Protective equipment such as gloves, safety goggles, and face masks should be worn when handling lubricants, sealants, or chemicals.
-
Compatibility: Ensure all components are compatible in terms of pressure ratings, temperature tolerances, connection types, and materials.
-
Seal Integrity: Inspect threads, seals, and gaskets before commissioning to prevent leaks, which can reduce system efficiency and cause failures.
-
Maintenance Access: Choose installation locations that allow for easy access during routine maintenance to reduce downtime and service costs.
Common Connection Types for Pneumatic Ball Valves
Pneumatic ball valves are available in various connection styles to meet specific application requirements:
-
Flanged Pneumatic Ball Valves: Ideal for high-pressure applications, flanged valves offer strong, leak-free connections and are easy to install and remove for maintenance.
-
Threaded Pneumatic Ball Valves: These valves are suitable for smaller pipelines and offer a cost-effective connection method using NPT or BSP threading.
-
Tri-Clamp Pneumatic Ball Valves: Used in sanitary applications, tri-clamp valves provide a smooth, crevice-free connection ideal for clean environments such as food or pharmaceutical industries.
-
Wafer-Type Pneumatic Ball Valves: These space-saving valves are mounted between pipeline flanges and are suitable for tight installations.
-
Welded Pneumatic Ball Valves: Ideal for high-pressure or high-temperature environments, welded valves provide the most robust, leak-proof connection.
Applications Across Industries
Pneumatic ball valves are used in a wide variety of industries to control the flow of liquids, gases, and slurries. Common applications include:
-
Oil & Gas: Flow isolation, emergency shutoff, and gas distribution.
-
Chemical Processing: Handling corrosive fluids, blending systems, and batch reactors.
-
Water Treatment: Filtration systems, pump stations, and chemical dosing lines.
-
Pharmaceuticals & Food: Hygienic fluid transfer in clean environments.
-
HVAC: Regulating heating and cooling water in building systems.
-
Power Generation: Control of steam and condensate in boiler systems.
These valves are often integrated with automated control systems, allowing for remote monitoring and operation via SCADA or PLC systems.
Challenges and Maintenance
While pneumatic ball valves are highly durable, they can encounter certain issues:
-
Air Supply Contamination: Dirty or moisture-laden air can clog actuator components, leading to sluggish operation or failure.
-
Seal Degradation: Valve seats and stem seals may degrade over time, leading to internal leakage and reduced performance.
-
Incorrect Sizing: An undersized actuator may struggle to operate the valve fully, while an oversized actuator can cause excessive wear or create safety concerns.
To mitigate these issues, a regular maintenance schedule is essential. Maintenance tasks include periodic cleaning and lubrication, inspecting seals and gaskets, checking actuator pressure, and verifying torque output.
Final Thoughts
Pneumatic ball control valves provide a reliable, efficient, and cost-effective solution for flow control in automated systems. Their speed, energy efficiency, and fail-safe features make them an excellent choice for industries requiring rapid response times and long-term durability. By understanding the key principles of pneumatic actuation and carefully selecting the appropriate valve and actuator design, engineers and system integrators can optimize system performance and ensure continuous, trouble-free operation across a variety of industries.
As the demand for automation grows, pneumatic ball valves will remain central to the evolution of smarter, safer, and more efficient industrial processes.Know more about Google SEO Directory
