The Evolution and Diversity of EV Plugs: A Comprehensive Guide
Understanding EV Charging Plugs: Types, Standards, and Regional Differences
Introduction
As a professional EV charger manufacturer in China, Topper Company delivers dependable electric vehicle charging stations and comprehensive solutions.
As the world shifts towards sustainable energy solutions, electric vehicles (EVs) have emerged as a cornerstone of the green revolution. Central to the functionality of EVs is the charging infrastructure, with EV plugs playing a pivotal role. But what exactly are EV plugs, and how do they differ across regions and vehicle brands? This article explores the intricacies of EV charging plugs, their types, functionalities, and the standards that govern them.
What Are EV Plugs?
An EV charging plug is the interface connecting an electric vehicle to a charging station, enabling electricity to flow into the vehicle’s battery. Much like household appliance plugs, EV plugs are designed for efficient and safe power delivery. However, unlike standard plugs, EV plugs are tailored to meet the specific power and safety requirements of electric vehicles, which vary based on the vehicle make, model, charging level, and regional electrical standards.
EV charging plugs are not universal — they vary significantly by region, charging type (Level 1, Level 2, Level 3), and manufacturer. This diversity reflects the different electrical infrastructure and regulations worldwide.

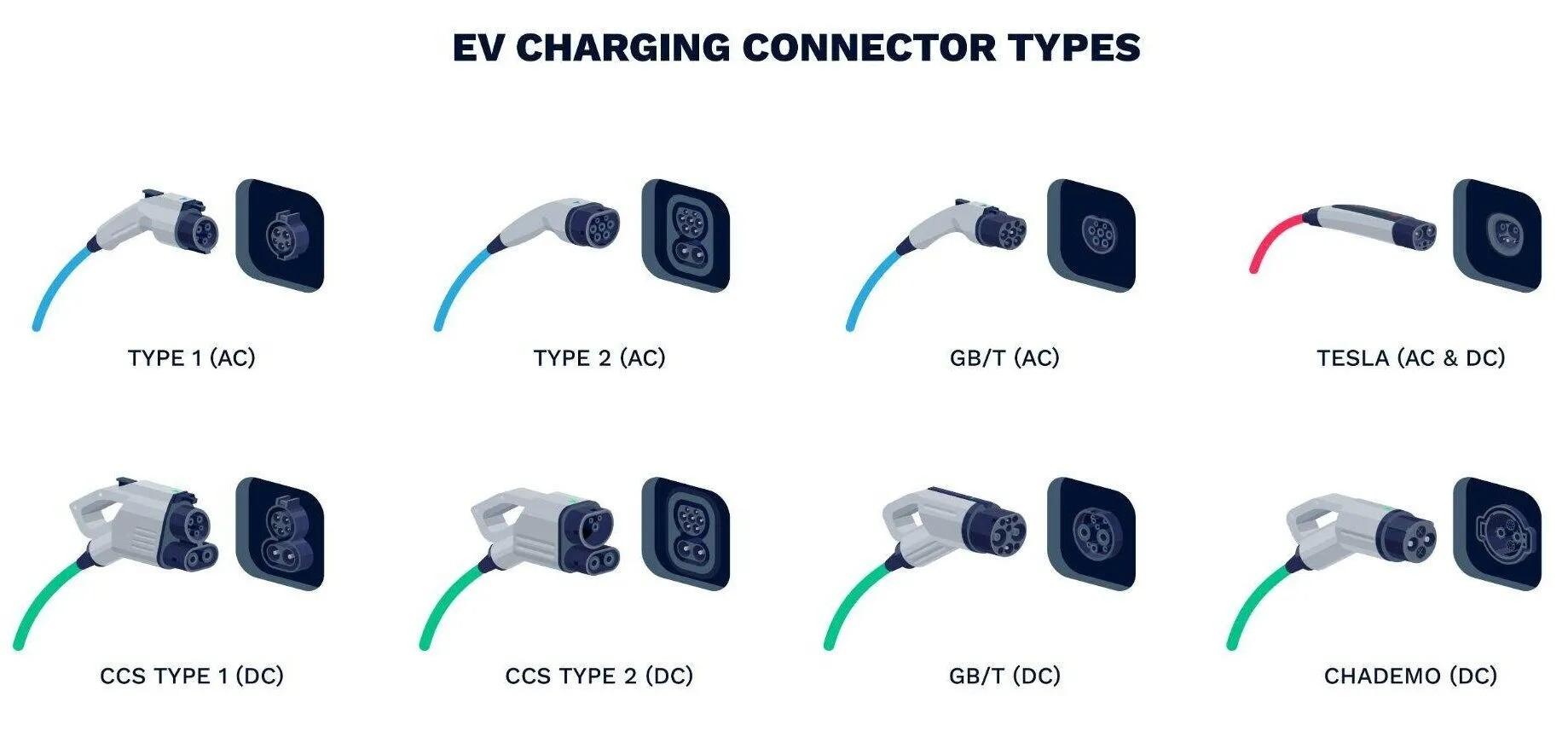

EV Charging Connector Types
Level 1 & 2 Charging: AC Charging Plugs
Level 1 and Level 2 charging utilize alternating current (AC) and are common for home and public charging. These levels offer slower charging speeds compared to DC fast charging but are sufficient for everyday use. The primary AC plugs are:
Type 1 – SAE J1772
The Type 1 plug, or SAE J1772, is the standard in North America and parts of Asia for Level 1 and Level 2 charging. Designed for single-phase AC power, it features a 5-pin configuration and supports power delivery up to 19.2 kW. It is the most common plug for residential and public charging stations in these regions.
Type 2 – Mennekes
In Europe, the Type 2 plug (Mennekes) is standard. It supports three-phase AC power, allowing higher power delivery — up to 43 kW. Its 7-pin design includes an automatic locking mechanism for enhanced safety, preventing accidental disconnections during charging. This plug’s compatibility with three-phase power enables faster charge times, a key advantage for European EV users.
Level 3 / Fast Charging: DC Fast Charging Plugs
Level 3 or DC fast chargers deliver direct current (DC) directly to the battery, bypassing the vehicle’s onboard charger and drastically reducing charging time. The main DC fast charging plugs include:
CCS – Combined Charging System
The CCS standard integrates AC and DC charging into a single plug, combining Type 1 or Type 2 AC connectors with two additional DC pins.
-
CCS1: Used mainly in North America, this combines the Type 1 plug with DC fast charging pins. It’s widely compatible and common at public fast-charging stations.
-
CCS2: The European variant combines the Type 2 plug with DC pins, supporting power delivery up to 350 kW, making it one of the fastest charging options globally.
CHAdeMO
CHAdeMO is a fast-charging protocol primarily used by Japanese manufacturers like Nissan and Mitsubishi. It features a distinct plug design and supports high-power DC charging. Although its global adoption is more limited compared to CCS, it remains prevalent in markets with Japanese EVs.
GB/T
China’s domestic fast-charging standard, GB/T, supports both AC and DC charging and is integral to China’s vast and rapidly growing EV market. Developed by the Chinese government, GB/T plugs meet the specific technical requirements of local EVs and infrastructure.
Tesla Supercharger
Tesla’s proprietary charging system supports Levels 1, 2, and 3 charging with both AC and DC power. In North America, Tesla uses the NACS (North American Charging Standard) plug, which can connect to Type 1 stations via adapters. In Europe, Tesla has adopted the CCS2 standard to align with regional infrastructure.
Tesla Superchargers are known for high-speed charging, delivering up to 250 kW at some stations, enabling quick charging and convenient long-distance travel for Tesla owners.
Conclusion
The world of EV plugs is diverse, reflecting regional electrical standards and vehicle requirements. From the Type 1 and Type 2 plugs for AC charging to CCS, CHAdeMO, GB/T, and Tesla Supercharger plugs designed for fast DC charging, each type plays a crucial role in the EV ecosystem.
As electric vehicle adoption grows, the development of standardized, interoperable charging solutions will be vital for a seamless user experience. Understanding the various EV plug types helps owners and enthusiasts make informed decisions when charging at home, public stations, or on long trips—ultimately supporting the transition to a greener, more sustainable future.Know more about Google SEO Directory
