Bellows Globe Control Valve: Precision, Safety, and Performance in Flow Control

Posted 2025-07-08 03:44:55

Introduction

We are a leading control valve manufacturer in China, delivering high-quality valves and control actuators designed to meet a wide range of industrial applications.
In industries where safety, environmental protection, and process reliability are critical, even the smallest leaks can have severe consequences. Whether in petrochemical plants, pharmaceutical manufacturing, power generation, or semiconductor fabrication, strict compliance with safety and emission regulations is mandatory. In such demanding settings, bellows globe control valves have emerged as essential components, offering precise flow control combined with zero-emission sealing performance.

A bellows globe control valve is an enhanced version of the traditional globe valve distinguished by its integrated metallic bellows seal. This flexible bellows provides a hermetic barrier around the valve stem, effectively eliminating fugitive emissions and significantly improving sealing reliability. By preventing stem leakage, bellows seals extend valve life, reduce maintenance, and ensure safe handling of hazardous or volatile fluids.

This article delves into the design, functionality, benefits, and applications of bellows globe control valves, highlighting their pivotal role in achieving safe and efficient industrial operation.

What Is a Bellows Globe Control Valve?

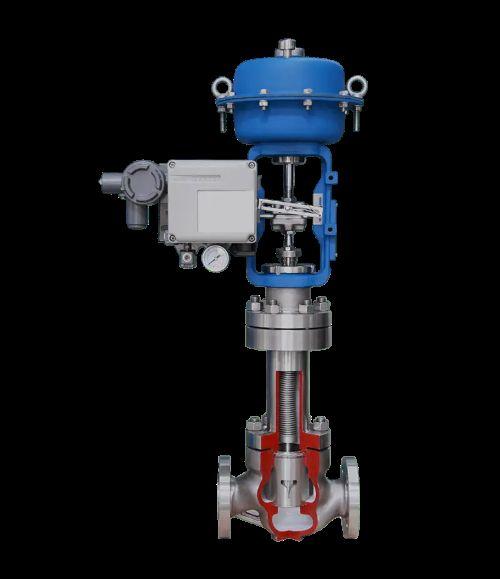

A bellows globe control valve is a linear-motion valve engineered for precise fluid flow regulation. Unlike conventional globe valves that rely on packing around the stem, this design incorporates a metallic bellows assembly positioned between the valve stem and bonnet. The bellows flexes with stem movement, maintaining a fully sealed barrier that isolates the process fluid from the external environment and eliminates stem leakage risk.

Typically made from corrosion-resistant stainless steel or high-performance alloys, the bellows is welded securely to both the valve stem and bonnet. As the valve modulates flow by moving the stem vertically, the bellows expands or compresses while preserving a hermetic seal—even under high pressures, corrosive media, or elevated temperatures.

Why Choose a Bellows Seal?

Traditional packing systems can wear, relax, or degrade due to thermal cycling, vibration, or chemical attack, ultimately allowing fugitive emissions. Bellows-sealed valves eliminate this vulnerability by replacing the packing seal with a metallic bellows, delivering key advantages:

Hermetic Sealing: Achieves zero external leakage, meeting strict emission standards such as TA-Luft, ISO 15848, and EPA regulations.
Reduced Maintenance: No need for packing adjustments or replacements, minimizing labor and downtime.
Extended Service Life: Bellows assemblies are engineered for tens of thousands of full cycles.
Enhanced Safety: Critical when controlling toxic, flammable, or environmentally hazardous fluids.

Key Design Features

Metallic Bellows Assembly: Thin-walled stainless steel or Inconel bellows designed for durability and flexibility. Helium leak-tested to ensure absolute sealing integrity.
Non-Rotating Stem: Prevents twisting forces on the bellows, enhancing seal longevity and valve stability.
Hermetically Welded Connections: Minimizes threaded or flanged joints in sealing areas to eliminate potential leak paths.
Vacuum Brazed or Welded Seat: Permanently secured valve seat ensures leak-tight sealing without loosening risk.
Backup Packing Seal: Provides secondary containment in rare cases of bellows failure. Leak detection ports may be incorporated for early warning.

Globe Valve Mechanism Overview

Globe valves feature a characteristic spherical body housing a movable disc or plug that modulates flow by throttling against a stationary seat. The main components include:

Valve Body: Pressure-containing shell with inlet and outlet ports.
Bonnet: Contains the stem and bellows, providing access for maintenance.
Valve Stem: Connects actuator or handwheel to the plug for precise motion transfer.
Plug (Disc): Regulates fluid flow by moving relative to the seat.
Seat Ring: Provides a sealing surface for the plug.
Bellows Seal: Welded to stem and bonnet to prevent fluid escape.
Packing Assembly: Acts as a backup seal.

These valves often operate with pneumatic, electric, or hydraulic actuators for remote or automated control.

Internal Trim and Flow Control

Valve performance hinges on the internal trim design, often featuring:

Cage Guidance: Keeps the plug aligned for smooth, stable operation.
Replaceable Trim: Enables flow characteristic customization or noise attenuation upgrades.
Anti-Cavitation Features: Protects against damage caused by vapor bubble collapse at high differential pressures.
Noise Reduction Designs: Mitigate noise in steam or gas applications.

The combination of bellows sealing and advanced trims ensures precise control, longevity, and safety.

Advantages of Bellows Globe Control Valves

Zero Leakage: Helium leak rates as low as 10⁻⁶ mbar·l/s ensure compliance with strict environmental standards.
Safety Compliance: Meets or exceeds requirements from EPA, ISO 15848, TA-Luft, and others.
Lower Maintenance: Eliminates repacking procedures and associated downtime.
Durability: Bellows withstand 20,000 to 50,000 full strokes, resisting corrosion and fatigue.
Process Control: Provides precise throttling with excellent repeatability and minimal hysteresis.
Versatility: Suitable for liquids, gases, vapors, and slurries across wide pressure and temperature ranges.

Typical Applications

Bellows globe control valves are indispensable in environments demanding tight shutoff, zero emissions, and reliable control of hazardous fluids:

Petrochemical & Chemical: Handling corrosive, toxic, or flammable substances.
Power Generation: Controlling steam and boiler feedwater under high pressure.
Pharmaceutical & Food: Ensuring sterile conditions and leak-free operation.
Semiconductor: Ultra-pure water and gas distribution with contamination control.
Nuclear: Reactor coolant and high-integrity containment systems.
Cryogenics: Managing liquid oxygen, nitrogen, or helium flows at extreme temperatures.

Conclusion

As regulatory requirements tighten and industrial processes demand ever-higher safety and environmental standards, bellows globe control valves provide a superior solution. Their hermetic sealing design, combined with robust construction and precise flow control, makes them invaluable in managing dangerous or sensitive fluids.
