Understanding the Difference Between Pneumatic Control Valves and Self-Operated Control Valves

Posted 2025-07-08 03:46:37

Introduction
In process automation and fluid control, selecting the right control valve is essential for ensuring optimal performance, safety, and operational efficiency. Among the various types used in industry, pneumatic control valves and self-operated China control valves are often compared due to their differing operation principles and applications. Understanding their functions, advantages, and limitations helps engineers and operators make well-informed decisions.

This article provides a detailed comparison of pneumatic and self-operated control valves, covering their working principles, design features, typical applications, and performance distinctions.

What is a Pneumatic Control Valve?

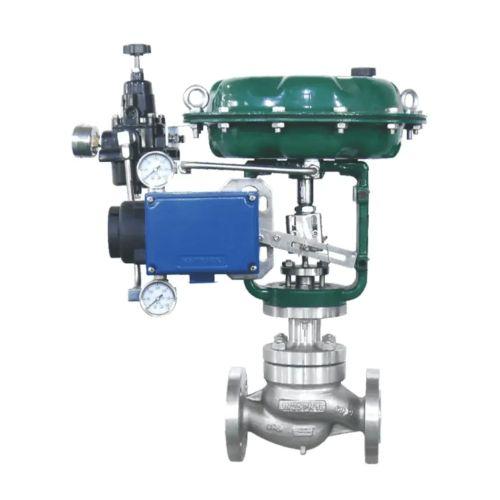

A pneumatic control valve is an automatic valve powered by compressed air. It mainly comprises a valve body and a pneumatic actuator. It regulates flow, pressure, temperature, or level by responding to signals from centralized control systems like DCS (Distributed Control System) or PLC (Programmable Logic Controller).

The valve’s positioner receives a control signal—commonly 4-20 mA or 0.2-1 bar—and adjusts the actuator accordingly. The actuator then moves the valve plug or disc, changing the flow path to maintain the desired process conditions.

Key Features:

Requires external compressed air and control signals
Responds quickly to control inputs
Provides high precision in flow and pressure regulation
Ideal for systems needing frequent, dynamic adjustments

What is a Self-Operated Control Valve?

A self-operated control valve functions independently without external power or control signals. It uses the process medium’s own pressure or temperature as the driving force. Equipped with sensors such as diaphragms or bellows, it reacts to process conditions and automatically adjusts the valve opening.

These valves are designed for simplicity and reliability, especially where precise control isn’t critical or where utility infrastructure is unavailable.

Key Features:

Operates without external energy or instrumentation
Utilizes the medium’s pressure or temperature for control
Best suited for static or infrequently adjusted systems
Common in small to medium pipelines for pressure reducing or relief

Pneumatic vs. Self-Operated Control Valves: A Comparison

1. Power Source and Control Method

Pneumatic Valve: Uses external compressed air and receives electronic or pneumatic signals, allowing remote and automated operation.
Self-Operated Valve: Relies solely on the medium’s pressure or temperature; operates autonomously without external control.

Verdict: Pneumatic valves suit automated systems requiring remote control. Self-operated valves fit standalone setups with limited infrastructure.

2. Control Accuracy

Pneumatic Valve: High accuracy (±0.3% to 0.5%) due to advanced actuators, positioners, and feedback controls.
Self-Operated Valve: Lower accuracy (±5% to 10%), limited by mechanical spring and diaphragm characteristics.

Verdict: Choose pneumatic valves for precise applications; self-operated valves work well for coarse control.

3. Adjustment Flexibility

Pneumatic Valve: Setpoints can be adjusted remotely and in real time through the control system.
Self-Operated Valve: Adjustments are manual, made on-site by changing spring tension or preset parameters.

Verdict: Pneumatic valves excel in dynamic, flexible control; self-operated valves suit fixed, stable settings.

4. Installation and Maintenance

Pneumatic Valve: Requires air supply lines, control cabling, and regular maintenance of actuators and positioners.
Self-Operated Valve: Easier installation with minimal infrastructure; low maintenance needs.

Verdict: Self-operated valves are advantageous in remote or low-maintenance environments.

5. Design and Layout Considerations

Pneumatic Valve: Versatile installation orientations; needs careful planning for air and signal routing.
Self-Operated Valve: Installation must accommodate pressure sensing points and medium characteristics (e.g., steam or gas phase).

Verdict: Pneumatic valves offer more installation flexibility; self-operated valves require specific layout attention.

6. Typical Applications

Pneumatic Control Valves	Self-Operated Control Valves
Chemical and petrochemical plants	Pressure-reducing stations
Power generation (boilers, turbines)	Steam heating supply
Water treatment and distribution	Lubrication systems
HVAC with centralized control	Gas pipelines without infrastructure
Industrial automation and process loops	Remote locations without power

When to Choose Which?

Opt for Pneumatic Control Valves if:

High accuracy and fast response are required
Automated control systems are in place
Remote monitoring and adjustment are needed
Process conditions frequently vary
Handling challenging media (e.g., corrosive or viscous fluids)

Opt for Self-Operated Control Valves if:

The process is stable with infrequent adjustments
No external power or air supply is available
A low-cost, low-maintenance solution is preferred
The valve is installed in remote or difficult-to-access areas
Basic, local-only control is sufficient

Summary: Key Differences

Feature	Pneumatic Control Valve	Self-Operated Control Valve
Power Source	External (Compressed air + Signal)	Internal (Medium’s pressure/temperature)
Control Accuracy	High (±0.3% to 0.5%)	Low (±5% to 10%)
Control Signal	Remote (DCS/PLC)	Local only
Adjustment	Dynamic, remote	Manual, on-site
Complexity	Higher	Simpler
Installation	Requires air and signal lines	Minimal infrastructure
Maintenance	Regular service needed	Low maintenance
Applications	Precision control	Basic pressure/temperature regulation

Conclusion

Pneumatic and self-operated control valves each fill important niches in fluid control systems. Pneumatic valves provide precision, flexibility, and integration into automated environments. Self-operated valves offer simplicity, cost-effectiveness, and reliability in stable, low-maintenance applications.

Careful evaluation of your process needs, infrastructure availability, and control requirements will guide you to the best valve choice for optimal performance, safety, and efficiency.Know more about Google SEO Directory
