Precision Flow Control with V-Port Ball Valves: Performance, Versatility, and Industry Applications

Posted 2025-07-11 01:43:08

Introduction

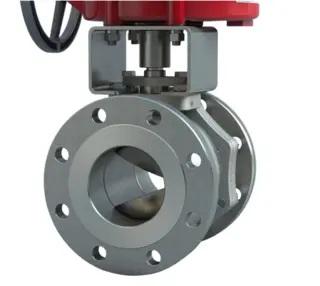

V-Port ball valves—often referred to as V-ball control valves—are engineered for high-precision flow control in demanding industrial environments. These rotary China control valves integrate the leak-tight performance of traditional ball valves with the high rangeability of characterized control valves, offering accurate modulation across a wide flow range.

With Class VI bubble-tight shutoff, low pressure drop, and fast response times, V-Port ball valves are ideal for applications ranging from temperature and steam regulation to cavitation control and pH balancing. Their rugged design and flexibility in port geometry and materials make them a preferred choice in industries such as chemical processing, power generation, oil & gas, and water treatment.

Port Options for Tailored Flow Control

V-Port ball valves are available with a range of standard and custom port configurations to suit different control needs:

Standard V-Port Angles:

15°
30°
60°
90°

Custom Options:

Slotted V-ports
Precision-machined custom ports

These configurations enable engineers to match flow characteristics precisely to application demands, enhancing process efficiency and control accuracy.

Durable Materials for Harsh Conditions

Ball Material:

316 Stainless Steel (CF8M)

Body Materials:

Stainless Steel (CF8M)
Carbon Steel (WCB)

These materials offer excellent resistance to corrosion, temperature extremes, and mechanical wear—making the valves suitable for aggressive fluids, steam, and other challenging media.

Key Applications

V-Port ball valves are optimized for industrial processes where accurate modulation and tight shutoff are essential. Common applications include:

Temperature control
Flow regulation
Steam and condensate systems
Cavitation reduction
Level and pressure control
pH balancing in process fluids

Core Features and Benefits

1. Class VI Bubble-Tight Shutoff
Engineered for zero leakage, V-Port valves maintain system integrity even under extreme pressures and temperatures—ideal for critical shutoff applications.

2. High Rangeability
V-Ball geometry allows precise control across a wide flow spectrum, supporting applications that require both low-flow precision and high-flow capacity.

3. Superior Flow Characteristics
Optimized internal design minimizes turbulence and promotes smooth, stable flow—improving system efficiency and reducing energy losses.

4. Reduced Pressure Drop
Streamlined flow path minimizes restriction, supporting high-efficiency operation in pressurized systems.

5. Fast Response
The rotary action and optimized actuator integration ensure quick, accurate adjustments—critical in dynamic process environments.

6. Compact, Space-Saving Design
Lightweight and easy to install, these valves fit seamlessly into tight system layouts or retrofits without sacrificing performance.

Customizable to Your Process

While standard V-port angles offer excellent control performance, custom flow geometries can be designed to suit unique process conditions. Whether it’s a high-turndown flow loop or a system with cavitation risks, custom porting enhances control precision and process reliability.

Certified for Global Standards

V-Port ball valves meet a wide range of international standards, ensuring quality, safety, and regulatory compliance:

API 607 – Fire-safe
ATEX – Explosive atmospheres
NACE MR0175 – Corrosion-resistant
PED / PE(S)R – Pressure equipment
SIL – Functional safety
TR CU – Eurasian Customs Union compliance

Complete Control Valve Package

To achieve optimal control performance, V-Port ball valves can be paired with a selection of actuators and valve controllers:

Actuator Options:

Pneumatic
Electric
Electro-hydraulic

These actuators are engineered for seamless integration with V-Port valves, ensuring precise response, high repeatability, and modular compatibility. Combined with digital or analog valve controllers, this package offers a full automation-ready solution.

Applications by Industry

Chemical Processing
Accurate flow, temperature, and pressure control in reactors, distillation units, and batch systems.

Oil & Gas
Reliable performance for upstream, midstream, and downstream operations—ideal for high-pressure pipeline flow regulation.

Power Generation
Essential for boiler, turbine, and condensate systems, where precise steam control is critical.

Water Treatment
Regulates flow and pressure in purification systems, distribution lines, and desalination plants.

Pharmaceutical & Food Processing
Provides hygienic, repeatable control in systems where product quality and regulatory compliance are paramount.

Conclusion

V-Port ball valves offer the perfect combination of precise control, zero-leakage shutoff, fast actuation, and durable construction. Their customizable port options, material choices, and actuator compatibility make them one of the most adaptable and high-performing control valves available.

Whether you’re managing high-pressure steam, corrosive chemicals, or delicate pH processes, V-Port valves provide the reliable modulation and responsiveness your system demands. Certified to meet global standards, these valves are ready to serve as the cornerstone of advanced flow control in a wide range of industries.Know more about Google SEO Directory
