Precision and Reliability in Flow Control: Pneumatic On/Off Globe Control Valves for Industrial Applications

Posted 2025-07-11 01:45:37

Precision and Reliability in Flow Control: Pneumatic On/Off Globe Control Valves for Industrial Applications

Introduction
Pneumatic on/off globe control valves are critical to achieving precise and dependable control over liquids, gases, and vapors in industrial systems. Known for their robust construction and high shut-off performance, these valves are ideal for applications where fluid isolation or emergency shutdown is essential. Their ability to integrate with automation systems makes them especially valuable in modern industrial environments focused on safety, efficiency, and minimal downtime.

This article explores the construction, key features, operational benefits, and wide-ranging applications of pneumatic on/off globe control valves—highlighting why they remain a preferred solution across sectors such as chemical processing, oil and gas, water treatment, power generation, and pharmaceuticals.

What Is a Pneumatic On/Off Globe Control Valve?

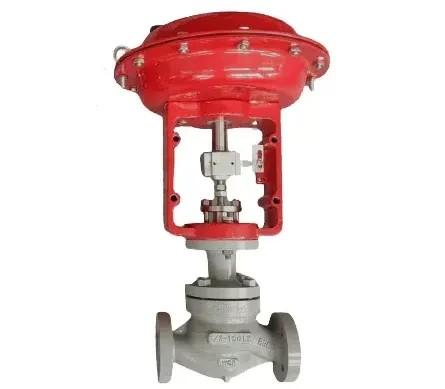

A pneumatic on/off globe control valve is a linear motion valve designed to fully open or fully close the flow path in a piping system. It uses a pneumatic actuator—powered by compressed air—to rapidly position the valve plug. When the valve receives a control signal, the actuator drives the plug against or away from the seat, achieving either complete shut-off or full flow.

These valves are built with modular construction, allowing for easy customization to match application-specific requirements. Add-on options such as metal bellows seals, limit switches, handwheels, or solenoid valves expand the valve’s capabilities and provide enhanced functionality and automation compatibility.

Valve Construction May Include:

Temperature extensions for high or cryogenic service
PTFE or soft-seated plugs for tight shutoff
Bellows seals for zero-emission sealing in hazardous service

Key Features and Benefits

✔ Compact Footprint
Ideal for systems with limited space, the valve’s streamlined design enables seamless integration into dense process installations.

✔ Modular Customization
Adaptable to different process requirements with add-ons like:

Handwheels for manual override
Metal bellows seals for leak-proof isolation
Thermal extensions for extreme temperature environments

✔ Corrosion-Resistant Materials
Valve bodies and bonnets are typically constructed from the same material—commonly stainless steel or carbon steel—to ensure chemical compatibility, structural strength, and resistance to corrosion.

✔ Class VI Shutoff Performance
Engineered to meet stringent ANSI/FCI 70-2 Class VI shutoff standards, these valves minimize internal leakage. PTFE inserts in the valve plug enhance the sealing capabilities for ultra-tight closure.

✔ Low Maintenance
Thanks to their modular architecture, maintenance is simplified. Parts can be replaced or repaired with minimal disassembly, reducing operational downtime and total cost of ownership.

Industrial Applications of Pneumatic On/Off Globe Valves

1. Chemical Processing
Ensure accurate flow interruption or activation in reactors, mixing vessels, and pipelines—especially when dealing with corrosive or hazardous fluids.

2. Oil & Gas
Used in upstream and downstream operations for isolation in separators, manifolds, and fuel handling systems, offering fast and fail-safe shutoff in critical zones.

3. Water & Wastewater Treatment
Regulate flow in chemical dosing lines, filtration systems, and effluent discharge pipelines—enhancing control in both municipal and industrial water treatment facilities.

4. Power Generation
Control steam, condensate, and cooling water in turbine bypass and auxiliary systems. The valves’ fast response and reliability make them indispensable for maintaining plant safety and operational efficiency.

5. Pharmaceutical Manufacturing
Used in clean-in-place (CIP) and sterilize-in-place (SIP) systems, these valves help maintain hygienic control of fluids under strict regulatory environments.

Conclusion

Pneumatic on/off globe control valves deliver a powerful combination of performance, reliability, and adaptability in flow control systems. Their ability to ensure Class VI shutoff, withstand extreme process conditions, and integrate into automated control loops makes them a cornerstone of modern industrial operations.

Their customizable design supports a wide array of process needs—whether you’re managing hazardous chemicals, high-pressure steam, or hygienic pharmaceutical fluids. As industries evolve toward greater automation and efficiency, pneumatic globe valves remain a vital tool for engineers seeking precision control and long-lasting durability.

Selecting the right valve configuration and ensuring proper installation and maintenance are essential to unlocking the full potential of these control valves—safeguarding your process and boosting long-term productivity.Know more about Google SEO Directory
