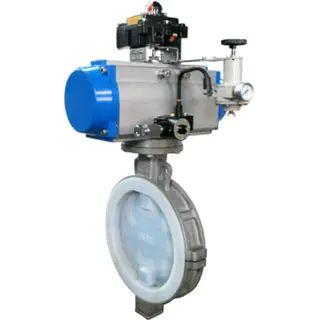

Plastic Lined Butterfly Control Valves: Advanced Solutions for Corrosive and High-Pressure Applications

Introduction

We are a leading control valve manufacturer in China, delivering high-quality valves and control actuators designed to meet a wide range of industrial applications.

Plastic lined butterfly control valves are engineered to deliver outstanding performance in demanding industrial environments. By combining advanced sealing technologies with a unique three-dimensional eccentric design, these valves provide precise flow control, enhanced durability, and low operational torque. Offering soft seals, hybrid soft-hard multi-level sealing, and full metal sealing options, they provide exceptional flexibility for a wide range of media and temperature conditions.

Designed to optimize energy efficiency and extend service life, plastic lined butterfly valves excel in corrosive and high-pressure applications. Whether in chemical processing, power generation, or wastewater treatment, they ensure reliable operation, minimal leakage, and long-term value.

Key Advantages of Plastic Lined Butterfly Control Valves

1. Broad Size and Pressure Range
Available in sizes from DN15 to DN1000, these valves suit both small and large pipeline systems. They support multiple pressure ratings, including:

• PN6, PN10, PN16

• ANSI Class 150, 300, and 600
  This wide compatibility facilitates integration into diverse systems worldwide.

2. Superior Corrosion Resistance
The plastic linings, typically F46 (PTFE) or PFA, provide excellent resistance to aggressive acids, alkalis, and oxidizing agents. Valve bodies are commonly made from WCB (carbon steel), CF8 (304 stainless steel), or CF8M (316 stainless steel) to meet mechanical and environmental requirements.

3. Leak-Free Operation
Compliant with ANSI B16.104 Class VI standards, these valves guarantee zero leakage in applications demanding absolute sealing. For more demanding high-pressure or temperature conditions, metal sealing options meeting Class IV or V leakage standards are available.

4. Advanced Three-Eccentric Design
The valve’s innovative three-eccentric structure reduces friction between the disc and seat, delivering:

• Extended sealing surface life through minimized wear

• Stable and consistent operating torque

• Fast opening and equal-percentage flow characteristics suitable for both throttling and on-off control

5. High Precision and Control Adjustability
With a control ratio up to 100:1, these valves provide fine modulation for complex processes, including:

• Dosing systems

• Multi-phase flow management

• Chemical injection and treatment

6. Reliable Packing and Wide Temperature Range
A variety of packing materials—such as PTFE, RTFE, and flexible graphite—ensure optimal sealing and reduced fugitive emissions. Temperature tolerances range from -30°C to 150°C, with optional designs extending from -40°C up to 570°C for extreme environments.

Additional Performance Features

• Low Torque Operation: Eccentric design and lightweight construction reduce torque requirements, enabling economical actuation and manual operation.

• Compact and Lightweight: Facilitates installation in confined spaces.

• Multi-Standard Compliance: Flange connections meet GB/T 12221-2005, ASME B16.10, API 609, and ISO 5752 standards.

• Versatile End Connections: Available in RF (raised face), RJ (ring joint), FM (flat face), lug, and wafer styles to fit various piping systems.

• Wide Media Compatibility: Suitable for water, steam, oil, air, gas, and chemical fluids.

Application Industries

1. Chemical Processing
Handles corrosive acids, alkalis, and solvents for acid production, dosing, and process control in aggressive pipelines.

2. Water & Wastewater Treatment
Regulates clean water supplies, wastewater flows, and disinfection processes in municipal and industrial systems.

3. Pharmaceutical and Food Industries
Ensures sanitary, contamination-free operation in CIP/SIP systems, ingredient batching, and food-grade fluid control.

4. Petrochemical, Oil & Gas
Provides corrosion resistance and reliable sealing in chemical injection, offshore platforms, and refinery process controls.

5. HVAC and Power Generation
Controls steam distribution, condensate, and chilled water flows, enhancing energy efficiency in thermal systems.

6. Mining and Metallurgy
Manages abrasive slurries and corrosive solutions in hydrometallurgy, mineral processing, and dust suppression.

Conclusion

Plastic lined butterfly control valves offer a robust, versatile solution for industrial applications demanding high corrosion resistance, precise flow control, and energy efficiency. Their advanced three-eccentric design, superior sealing technologies, and wide material compatibility deliver durable, leak-free performance with minimal maintenance.

From pharmaceuticals to petrochemicals, these valves effectively address the complex challenges of corrosive and high-pressure environments. As a leading manufacturer in China, we are committed to providing innovative, high-quality plastic lined butterfly valves that meet the evolving needs of global industrial valve applications.Know more about Google SEO Directory
