Differential Pressure Control Valves in HVAC Systems: Function, Applications, and Benefits

Posted 2025-07-19 02:25:02

Introduction

We are a leading control valve manufacturer in China, delivering high-quality valves and control actuators designed to meet a wide range of industrial applications.
In heating, ventilation, and air conditioning (HVAC) systems, maintaining optimal pressure and flow is essential for both efficiency and safety. Differential Pressure Control Valves (DPCVs) play a key role in achieving this balance. These specialized valves regulate pressure within specific sub-circuits of heating or cooling systems, ensuring equipment operates within its designed parameters. By preventing excessive pressure differentials, DPCVs protect critical components, enhance energy efficiency, and contribute to the overall reliability of HVAC systems.

This article explores the functionality, applications, installation practices, and benefits of DPCVs, highlighting their growing importance in modern HVAC infrastructure.

What is a Differential Pressure Control Valve?

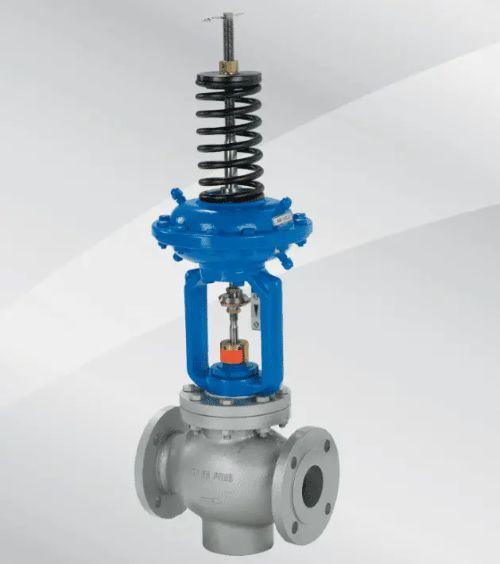

A Differential Pressure Control Valve (DPCV) is a mechanical device used in HVAC systems to maintain a set pressure differential (ΔP) across a designated section of piping. This regulation helps limit the flow rate under full load conditions, ensuring the system operates efficiently and safely.

DPCVs are especially valuable in hydronic heating, chilled water systems, and other applications where pressure fluctuations occur due to variable flow conditions. By keeping pressure differences stable, DPCVs improve system responsiveness and prevent issues caused by unbalanced flows.

Applications of Differential Pressure Control Valves

1. Hydronic Heating Systems

In heating circuits—such as radiators or underfloor heating—DPCVs manage pressure differences to ensure uniform heat distribution. They prevent over-pressurization that could lead to leaks, system noise, or component damage.

2. Chilled Water Systems

In chilled water loops, DPCVs maintain a consistent pressure differential across the chiller, ensuring optimal operation and preventing pressure spikes that can damage sensitive equipment.

3. Variable Flow Systems

Modern HVAC systems often use variable-speed pumps to adjust flow based on demand. DPCVs help stabilize the resulting pressure fluctuations, especially in larger or more complex networks, by maintaining steady conditions across sub-circuits.

4. Energy-Efficient Systems

DPCVs reduce strain on pumps by eliminating unnecessary pressure buildup, leading to significant energy savings and lower operational costs.

Installation of Differential Pressure Control Valves

Proper installation is crucial to the performance of DPCVs. The valve’s location, sizing, and compatibility with the system all influence its effectiveness.

1. In Chilled Water Loops

DPCVs in chilled water systems are often installed on a bypass line between the supply and return piping of the chiller. These are sometimes referred to as differential pressure bypass valves or pressure relief valves.

When the pressure drop across the chiller exceeds the setpoint, the DPCV opens to allow flow through the bypass, preventing the chiller from operating outside its intended pressure range.

Installation Tips:

Size the valve according to system flow rates and ΔP values.
Ensure accessibility for adjustment and maintenance.
Follow system design guidelines and the chiller manufacturer's instructions.

2. In Heating Systems

In heating applications, DPCVs are usually positioned near sub-circuits like radiator or underfloor heating loops. This setup ensures proper pressure regulation across those areas, promoting balanced heating.

Installation Tips:

Position the valve as close as possible to the regulated sub-circuit.
Verify compatibility with operating pressures and temperatures.
Include periodic inspection in the maintenance plan.

Benefits of Differential Pressure Control Valves

1. Equipment Protection

DPCVs shield pumps, chillers, heat exchangers, and other sensitive components from damage caused by excessive or uneven pressure.

2. Energy Efficiency

By stabilizing pressure, DPCVs minimize the workload on pumps and other mechanical equipment, reducing energy consumption and extending equipment life.

3. Improved System Reliability

Stable pressure across the system lowers the risk of breakdowns and unexpected downtime. This contributes to long-term reliability and reduces repair costs.

4. Enhanced Comfort

Consistent pressure means consistent heating and cooling delivery, leading to better occupant comfort in both residential and commercial buildings.

5. Regulatory Compliance

DPCVs help systems meet HVAC codes and efficiency standards by promoting safe, balanced, and optimized operation.

Conclusion

Differential Pressure Control Valves are critical to the performance and efficiency of modern HVAC systems. By regulating pressure within sub-circuits, they enhance energy efficiency, protect equipment, and ensure consistent thermal comfort. Whether installed in hydronic heating systems, chilled water loops, or variable flow applications, DPCVs play a vital role in maintaining balanced, reliable operation.

As building systems become more energy-conscious and technologically advanced, the role of DPCVs will continue to expand. For HVAC professionals seeking to design or retrofit efficient systems, understanding the function and proper application of differential pressure control valves is essential. These valves aren’t just optional components—they’re foundational tools for ensuring high-performance HVAC system design.Learn more about Google SEO.
