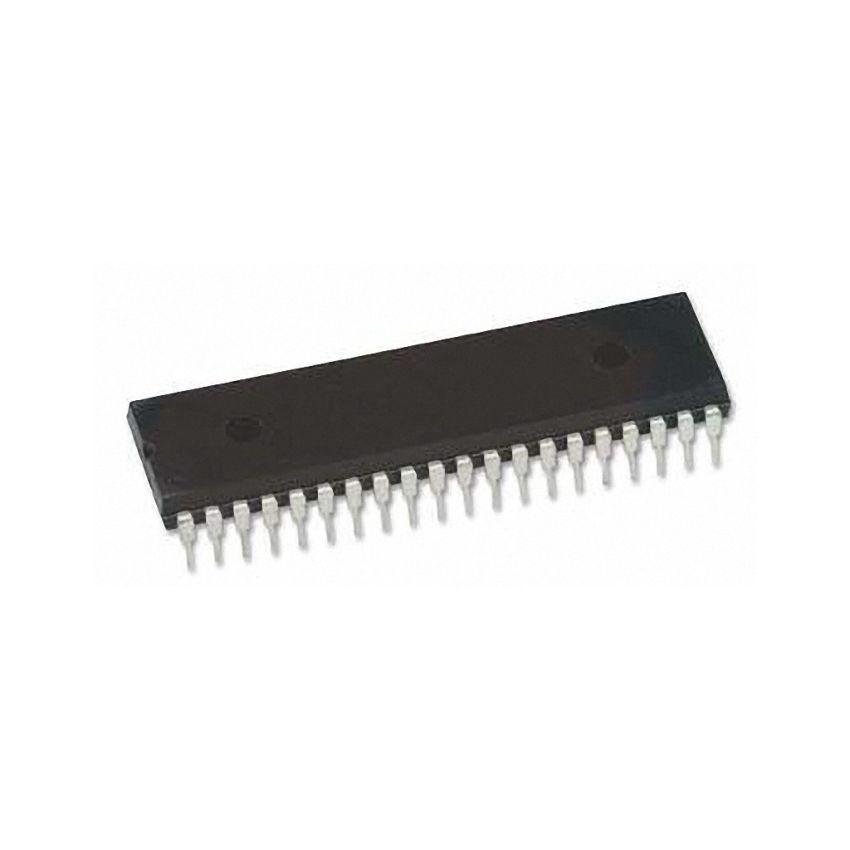

The UPD7201AC NEC Multiprotocol Serial Controller IC DIP‑40 is a legacy microprocessor peripheral that was engineered by NEC (now part of Renesas). Packaged in a 40‑pin DIP, this integrated circuit delivers dual serial‐channel support and multi‑protocol flexibility—capabilities crucial for design engineers incorporating versatile communication blocks into embedded systems.

The version sold by Nikko Electronics is clearly labeled UPD7201AC NEC Multiprotocol Serial Controller IC DIP‑40, making it easy to identify and source.

2. Core Features & Functionality

At its heart, the UPD7201AC NEC Multiprotocol Serial Controller IC DIP‑40 is a multiprotocol serial communications controller (MPSCC), providing the following notable attributes:

Dual-channel operation: Supports two independent serial data channels via the same IC.
Multiprotocol support: Although precise protocols are not listed in NEC’s datasheet, typical compatibility includes standard formats such as RS‑232, RS‑422, and RS‑485, akin to later multiprotocol transceivers.
Legacy packaging: Offered in a through‑hole 40‑pin DIP that’s compatible with breadboards, retrofits, and prototyping rigs .
Industrial build and compliance: NEC's longstanding design includes robust reliability tailored for industrial temperature and supply tolerances, and—based on inference—RoHS compliance.

3. Technical Specifications

According to NEC’s datasheet:

Part number: μPD7201A (NEC) / UPD7201AC (Nikko Electronics).
Configuration: Dual-channel serialized I/O adaptable to multiple communication protocols.
Package: 40‑pin DIP.
Compliance: Likely RoHS (lead‑free) per distributor notes.
Suppliers: Available from multiple sources, including Nikkoe.com (£18.99) and global component wholesalers (approx. €1.68 in bulk).

4. Practical Applications & Use-Cases

4.1 Legacy System Upgrades

The UPD7201AC NEC Multiprotocol Serial Controller IC DIP‑40 is ideal for upgrades to vintage computers, industrial machinery, and communication subsystems, especially when backward‐compatibility is critical.

4.2 Dual-Port Serial Interfaces

Systems requiring two simultaneous serial ports—for tasks such as modem communication or data logging—benefit from the dual-channel architecture of the UPD7201AC.

4.3 Embedded Prototyping & Development

Its robust DIP‑40 form factor makes it suitable for breadboarding, prototypes, or educational kits where solderless sockets are used, facilitating modification-friendly engineering.

5. Purchasing & Availability

Nikko Electronics currently lists the UPD7201AC NEC Multiprotocol Serial Controller IC DIP‑40 at £18.99 with 33 units in stock on the referenced page. This includes standard warranty and return policy.

Other global suppliers, such as TVSat, offer bulk lots (3 pcs) at ~€1.68 each — a preferred option for larger system integrators. On eBay, individual or small-lot purchases (3 pcs) are commonly available around $7 depending on seller location and shipping .

6. Alternative & Contemporary Components

While the UPD7201AC offers multiprotocol capabilities, newer transceivers from firms like TI, Maxim, and Analog Devices include modern features:

Single‑chip support for RS‑232, RS‑422, RS‑485, etc.
Integrated ESD protection, software-controlled termination, and slew rate control for improved EMI/EMC performance.
Lower current consumption, smaller packages, and 3.3 V support.

Nevertheless, these modern parts often come in surface‑mount packages (QFN/SOIC), whereas the DIP‑40 form factor of the UPD7201AC NEC Multiprotocol Serial Controller IC DIP‑40 remains preferred for hobbyists, testing, or legacy system replacement.

7. Summary & Final Thoughts

The UPD7201AC NEC Multiprotocol Serial Controller IC DIP‑40 stands out as a robust, dual‑channel multi‑protocol serial controller in a classic DIP packaging—perfectly suited for retrofits, embedded design, and industrial use. While newer semiconductors offer advanced control and efficiency, the DIP‑40 UPD7201AC excels in form factor, ease of handling, and availability.

Key highlights:

Dual independent serial ports
Supports multiple protocols akin to modern MPSCCs
Legacy 40‑pin DIP ideal for through‑hole applications
Accessible pricing in small-batch or bulk lots
Durable NEC/Renesas design with industrial-grade reliability

Final Reflection

If you're seeking a tried‑and‑true dual‑channel serial controller with versatile protocol support—within a user‑friendly, through‑hole package—the UPD7201AC NEC Multiprotocol Serial Controller IC DIP‑40 is an excellent choice. Whether for restoration, prototyping, or production, it blends NEC’s legacy craftsmanship with an accessible form factor. As long as your design allows for older ICs and 5 V domain operation, this chip remains a relevant and reliable component in today’s evolving electronics landscape.
