Internal Grinding Machines: A Comprehensive Analysis of Core Types, Technical Features, and Industrial Applications
As a key equipment in the field of precision machining, internal grinding machines focus on the grinding process of the inner hole surface of workpieces, covering the processing requirements of cylindrical, conical, and other complex-shaped inner holes. Its technological evolution is closely linked to industrial development, and it plays an irreplaceable role, especially in high-precision industries such as automobile manufacturing and aerospace.
I. Core Types and Applicable Scenarios

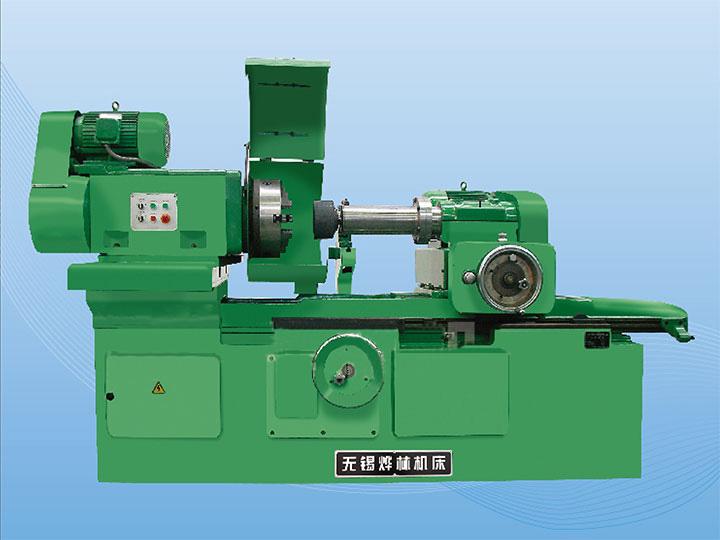

1. Ordinary Internal Grinding Machines
Suitable for the finishing of conventional inner holes, it has basic grinding functions and can meet the aperture accuracy requirements of most mechanical parts.
2. Planetary Internal Grinding Machines
Designed for large or non-rotatable workpieces (such as internal combustion engine cylinder blocks), the grinding wheel completes grinding through planetary motion, solving the size limitation problem that traditional equipment cannot handle.
3. Centerless Internal Grinding Machines
Specially designed for parts with small apertures (usually less than 50mm), the grinding wheel speed can reach hundreds of thousands of revolutions per minute, significantly improving processing efficiency and is suitable for the mass production of precision parts.
4. Jig Grinding Machines
Through a high-precision coordinate positioning system, it can process complex and irregular inner holes and is commonly used in the fields of mold manufacturing and high-precision mechanical components.
II. Technical Features and Performance Advantages
1. Ultra-high Machining Accuracy
Internal grinding machines can achieve micron-level dimensional tolerances and nanometer-level surface roughness, meeting the technical requirements of key components such as precision bearings and hydraulic valve bodies.
2. Intelligent Control
Modern models are integrated with a numerical control system (CNC), supporting automatic programming and real-time error compensation, reducing manual intervention and improving processing consistency.
3. Optimized Dynamic Stability
Using a high-rigidity bed structure, shock-absorbing guide rails, and dynamic balance grinding wheel technology, it can effectively suppress grinding vibration and ensure the accuracy and stability of long-term processing.
4. Adaptability to Multiple Materials
It can process super-hard materials such as hardened steel, cemented carbide, and ceramics, and is also compatible with the fine processing of brittle materials such as glass and composite materials.
III. Industrial Application Fields
1. Automobile Powertrain Systems
Precision grinding of key parts such as engine cylinder blocks, transmission shaft holes, and fuel injector inner cavities directly affects the performance and service life of the powertrain.
2. Aerospace Components
The processing of parts in high-temperature and high-pressure environments, such as the inner holes of aircraft engine turbine disks and the inner walls of hydraulic actuating cylinders, requires the equipment to have both high precision and material processing capabilities.
3. Precision Instrument Manufacturing
The ultra-precise inner hole processing of optical instrument lens barrels, semiconductor equipment cavities, etc., relies on the multi-axis linkage and nanometer-level control technology of jig grinding machines.
IV. Key Indicators and Strategies for Purchase
1. Analysis of Process Compatibility
Select the machine model according to the aperture range (such as Φ3mm to Φ500mm), the aspect ratio (such as deep holes with a ratio of over 1:10), and the batch size. For example, centerless grinding machines are suitable for the mass production of small holes, while planetary grinding machines are suitable for the processing of large-size single pieces.
2. Comparison of Core Parameters
- Grinding Accuracy: Pay attention to the radial runout (≤0.001mm) and the repeat positioning accuracy (±0.002mm).
- Spindle Power: High-speed grinding requires a spindle of over 20kW to ensure the material removal rate.
- Automation Configuration: Automatic loading and unloading and online measurement modules can reduce the auxiliary time by over 30%.
3. Full Life Cycle Cost Assessment
Comprehensively evaluate the initial investment, energy consumption (such as the efficiency of the grinding wheel motor), maintenance cycle (such as the frequency of guide rail lubrication), and spare parts supply system, and optimize the selection of equipment platforms with high technological maturity.
V. Technological Development Trends
1. Integration of Composite Processing
Integrated equipment combining turning, boring, and grinding processes can reduce the number of workpiece clamping times and improve the processing efficiency of complex parts.
2. Green Manufacturing Technology
Using minimum quantity lubrication (MQL) and high-efficiency filtration systems can reduce the consumption of grinding fluid by over 90% and achieve environmentally friendly production.
3. Application of Digital Twin
Optimizing grinding parameters through virtual simulation, predicting the service life of grinding wheels, reducing the trial-and-error cost, and promoting the upgrading of intelligent manufacturing.
The technological innovation of internal grinding machines continues to drive the manufacturing industry towards higher precision and higher efficiency. Enterprises need to select equipment from multiple dimensions such as process compatibility, technological foresight, and service support according to their own needs to maintain core competitiveness in the highly competitive industrial market.
