Plastic components are widely used in automotive, electronics, medical, packaging, and industrial applications. Because many plastic parts have complex profiles, thin walls, curves, holes, and tight dimensional tolerances, accurate inspection is essential. A Video Measuring Machine for plastic parts provides a fast, non-contact method for checking critical dimensions while maintaining consistent inspection quality.

Why Use a Video Measuring Machine for Plastic Parts?

Plastic components can be easily deformed by physical contact during inspection. A Video Measuring Machine (VMM) uses optical imaging to capture component features without applying significant mechanical pressure. This makes it suitable for inspecting delicate, lightweight, and complex plastic components.

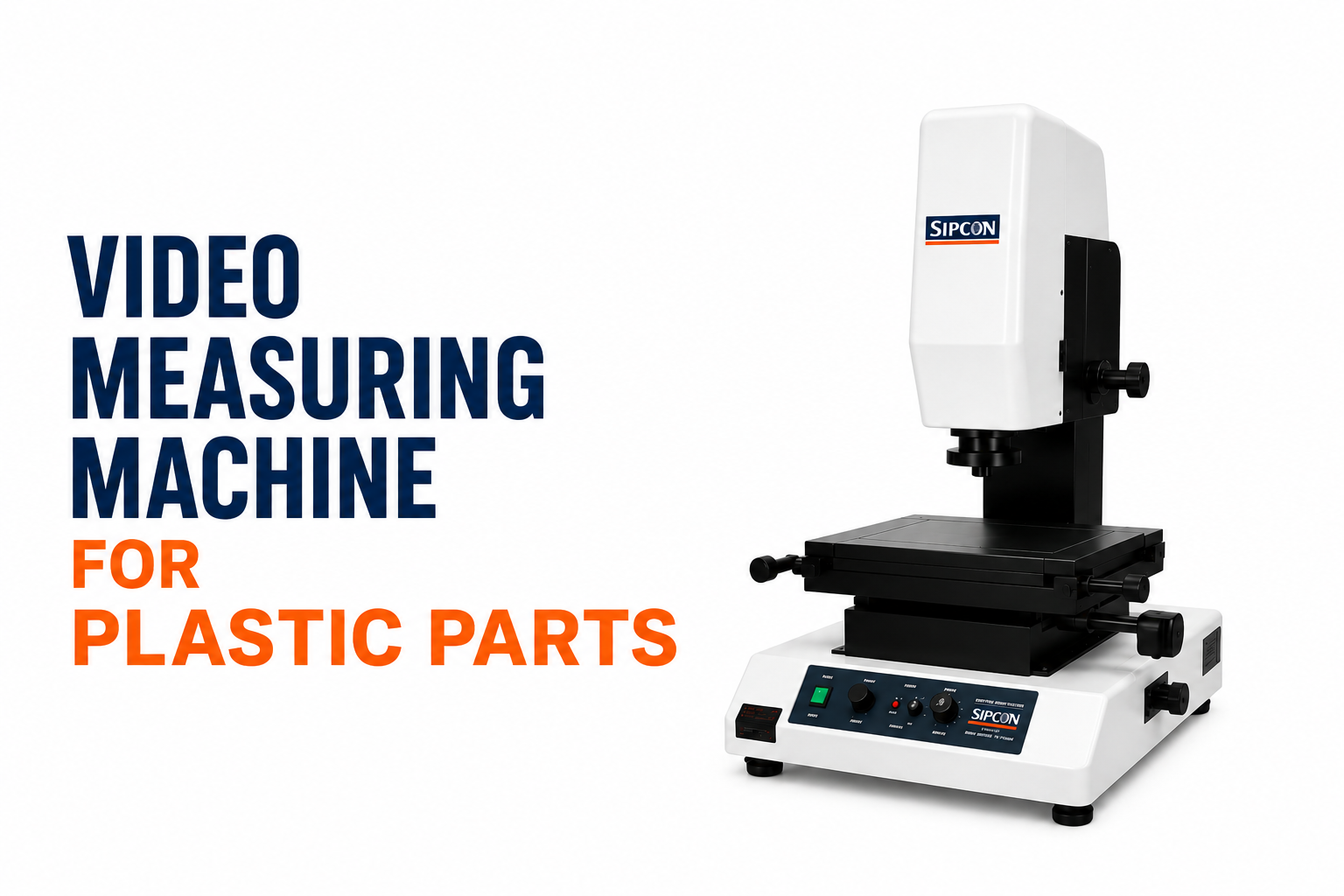

A vision measuring system can measure dimensions such as lengths, widths, diameters, radii, angles, profiles, and positional features. SIPCON's FOV Video Measuring Machine is designed with a wide field of view, high-resolution CMOS camera, rapid edge detection, and LED illumination for detailed inspection.

Faster Inspection with Wide Field of View

For manufacturers producing multiple plastic components, inspection speed is an important consideration. A wide-field-of-view system can capture multiple features in a single image, helping reduce measurement time and improve production efficiency. SIPCON's FOV Video Measuring Machine is specifically designed to capture details across larger parts while supporting rapid measurement.

Its software also provides a one-click menu for accessing physical dimensions, aligning axes, exporting Excel data, and programming measurements, simplifying repetitive inspection tasks.

Improve Dimensional Accuracy and Quality Control

Consistent dimensional inspection helps manufacturers identify variations before defective plastic parts reach customers. Advanced edge detection can help identify component features even when lighting or image contrast varies.

For applications requiring more than 2D inspection, the system also supports 3D measurement using a probe. Measurements can include diameter, radius, length, width, angle, straightness, roundness, flatness, parallelism, perpendicularity, and other geometric characteristics.

For manufacturers seeking broader precision measurement equipment, a Video Measuring Machine can complement solutions such as a Profile Projector, Coordinate Measuring Machine, and other optical inspection systems.

Choosing the Right Inspection Solution

When selecting a Video Measuring Machine for plastic parts, consider component size, required measurement accuracy, field of view, camera resolution, lighting, software capabilities, and the types of dimensions you need to inspect. Features such as CAD/DXF overlay, automated reporting, edge detection, and measurement programming can further improve inspection efficiency.

Conclusion

A reliable Video Measuring Machine for plastic parts can help manufacturers achieve faster, non-contact, and repeatable dimensional inspection. SIPCON's FOV Video Measuring Machine combines wide-field imaging, rapid edge detection, programmable illumination, 3D measurement, and advanced reporting features for demanding inspection applications.
