Convex Mansard Roof: Design Features, Benefits, and Construction Guide

I still vividly remember the first convex mansard roof I worked on. It was atop a restored mansard roof house from the 1880s. The curvature of the lower slope made the scaffolding tricky, but the final result—a flowing, elegant silhouette against the skyline—was unforgettable. Convex mansard roofs are more than just roofs; they’re architectural statements, combining functionality with striking design.

What Is a Convex Mansard Roof?

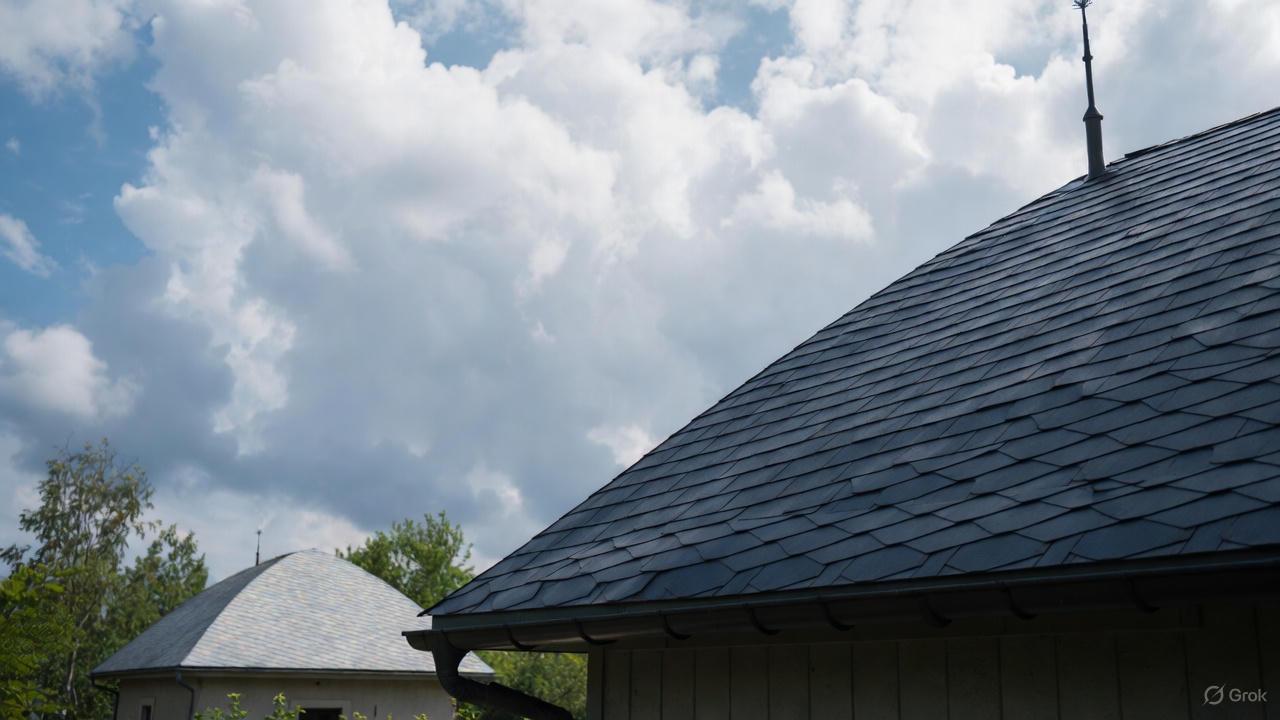

If you’ve ever asked, “what is a mansard roof?”, a convex mansard roof is a variation where the steep lower slope curves outward, creating a soft, bulging profile. Unlike standard straight mansard roofs, convex shapes add visual drama and often increase usable interior space in the attic or top floor.

They belong to the broader category of mansard roof types, which also includes straight, concave, and modified designs. Each variation affects mansard roof cost, structural complexity, and installation approach.

Design Features of Convex Mansard Roofs

Key characteristics include:

• Curved Lower Slope: Bulging outward for aesthetic appeal and additional interior space.

• Upper Shallow Slope or Mansard Flat Roof: Typically subtle, allowing for water drainage while maintaining the classical profile.

• Multiple Materials Options: Slate, shingles, or metal panels can be used depending on style and budget.

I’ve worked on mansard roof construction where we used slate for the lower slope and a PVC membrane on the upper mansard flat roof, combining durability with historic authenticity.

Benefits of a Convex Mansard Roof

1. Increased Interior Space

The outward curve maximizes the usable attic space, often turning it into bedrooms, offices, or storage areas. One project I completed transformed a previously tight attic into a full living suite.

2. Elegant Architectural Appeal

A convex mansard roof instantly elevates a building’s aesthetic. For historic mansard roof houses, it preserves original charm while allowing modern upgrades.

3. Durability

With proper mansard roof construction, convex slopes shed water effectively and can last decades with minimal maintenance. I’ve seen convex mansards surpass 50 years with just periodic inspections.

4. Flexibility in Materials

Convex slopes accommodate shingles, slate, or metal panels. This allows homeowners to match neighboring mansard roofs or historic preservation requirements.

Considerations and Costs

Replacing or constructing a convex mansard roof is more labor-intensive than straight designs. Curved rafters and precise decking layout increase complexity.

• Material Costs: High-quality slate or custom metal panels are pricier.

• Labor Costs: Skilled carpenters are essential. On one project, custom cutting curved rafters added 20% to the mansard roof cost.

• Replacement Costs: A typical mansard roof replacement cost for convex designs ranges $35,000–$75,000 for mid-sized homes, depending on materials and slope complexity.

Step-by-Step Convex Mansard Roof Construction

Based on field experience, here’s a practical approach:

1. Framing the Curved Lower Slope:
   Custom-cut rafters or trusses follow the convex curve. Accuracy is crucial—any deviation shows up in the finished roof.

2. Building the Upper Slope or Mansard Flat Roof:
   Install decking with a slight pitch for drainage. I always recommend membranes on flat portions to prevent leaks.

3. Applying Roofing Material:
   Shingles, slate, or metal panels go on the curved slope. I prefer using smaller modular pieces on convex areas for easier alignment.

4. Detailing and Flashing:
   Flashing is critical around dormers, chimneys, and transitions to the upper slope. Poor flashing is the main reason I’ve seen leaks in otherwise solid convex mansard roofs.

5. Final Touches:
   Ridge caps, gutter integration, and decorative trim complete the look. In historic homes, matching trim profiles ensures authenticity.

Maintenance Tips

Even though convex mansard roofs are durable, maintenance extends lifespan:

• Inspect shingles or panels annually.

• Clean debris from mansard flat roof sections to prevent pooling water.

• Check flashing and seams, especially after storms.

I advise clients to budget around 2% of mansard roof cost annually for maintenance, which prevents small issues from becoming expensive repairs.

Real-World Case Study

A historic mansard roof house I worked on had a convex lower slope with slate shingles and a flat upper section with a waterproof membrane. The mansard roof replacement cost came in at $62,000 for a 3,000 sq. ft. roof, including framing repairs. Ten years later, it remains leak-free and visually stunning, showing the value of investing in quality materials and craftsmanship.

Final Thoughts

A convex mansard roof is more than a functional structure; it’s an architectural centerpiece. From design flexibility to added interior space and aesthetic appeal, it delivers unique benefits—but requires expertise in mansard roof construction.

Whether building a new mansard roof house or replacing an existing roof, plan carefully, choose appropriate materials, and hire skilled professionals. The result is a durable, elegant roof that elevates your property for decades.
