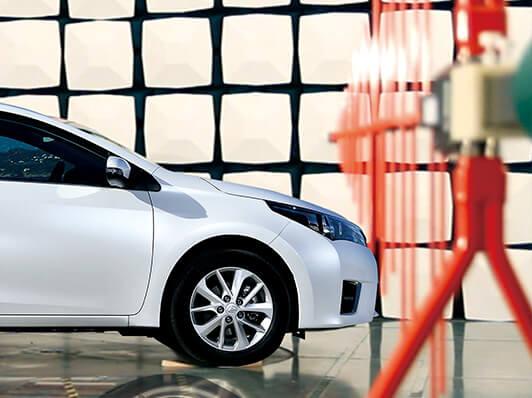

Designed for Radiated Emissions (EMI) and Radiated Immunity (EMS) testing of automotive components and military-standard equipment, supporting EMC validation for automotive electronics (e.g., vehicle communication modules, battery management systems) and military devices. Ensures compliance with core automotive and military standards in a compact space.

Key Test Parameters

Test Distance: 1m (standard distance from EUT to receiving antenna)
Typical Internal Dimensions:
Length: ~6.2m (includes test distance and equipment layout)
Width: ~5.4m (accommodates equipment placement)
Height: ~3.6m (accounts for antenna size and absorber installation)
Absorbing Materials:
Walls/Ceiling: Ferrite tiles + hybrid absorbers (optimized for 30 MHz–18 GHz; extendable to 40 GHz)
Floor: Metallic ground plane (with copper finger stock for electrical continuity)
Shielded Door:
Electromagnetic shielding door meeting automotive/military shielding efficacy requirements

Critical Performance Metrics

Shielding Effectiveness:
Low Frequency (14 kHz–1 MHz): ≥80 dB
High Frequency (1 MHz–6 GHz, extendable to 18 GHz): Typically ≥100 dB
ALSE Performance Validation:
Compliance: CISPR 25 (GB/T 18655)
Tolerance: Within±6 dB (≥90% of frequency points in 150 kHz–1 GHz range)
Grounding Resistance:
Standard: IEC 60364-6 (GB/T 16895.23)
Requirement: <4Ω
Insulation Resistance    :
Standard: IEC 60364-6 (GB/T 16895.23)
Requirement: >2 MΩ
Ambient Noise Level    Compliance: CISPR 25 (GB/T 18655)
Requirement: At least 6 dB below Class 5 limits
Test Table Grounding Resistance:
Standard: CISPR 25 (GB/T 18655)
Requirement: <2.5 mΩ between reference ground plane and test table ground plane

Antenna & Test System Configuration

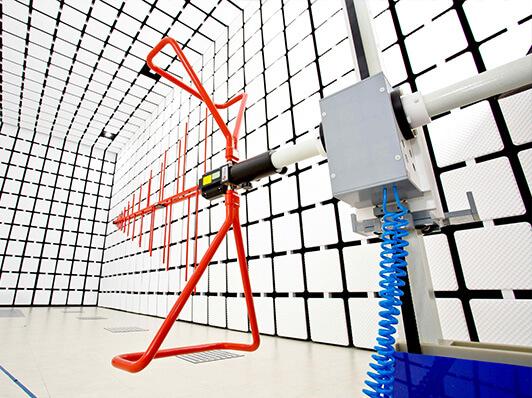

Antenna Types: Dual-polarized (horizontal/vertical, >30 MHz), covering 150 kHz–6 GHz (extendable to 18 GHz)
Load Capacity & Dimensions: Compatible with automotive components (e.g., headlights, ECUs, sensors)
Positioning Accuracy: ±1°
Antenna Tower: Height-adjustable for 1m method testing

Compliance Standards

Radiated Emissions: CISPR 25 (GB/T 18655)
Radiated Immunity: SO 11452-2
